Factory M24 Round USB Connector Plastic Waterproof Panel Mount USB Connector

Name: Factory M24 Round USB Connector Plastic Waterproof Panel Mount USB Connector
Brand: CNLINKO
Price: 9.60 USD

Quality Factory M24 Round USB Connector Plastic Waterproof Panel Mount USB Connector wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : BD24-USB3-MP-MP-0D5M-001&BD-24-J/USB3/213/SX-42-20

Certification : CUL,UL,CE,ROHS,CCC,ISO9001

MOQ : 10

Price : $9.60-11.20

Type : usb

Application : Data, Industrial Connectivity

Gender : Male

Protect level : IP68/IP67

Housing and insulating parts : high-performance engineering plastics

Color : Black

Connector type : USB Connector

Feature : Fast Installation

Rated Voltage : AC 5V

Rated Current : 900mA

Package : Carton

Contact Now

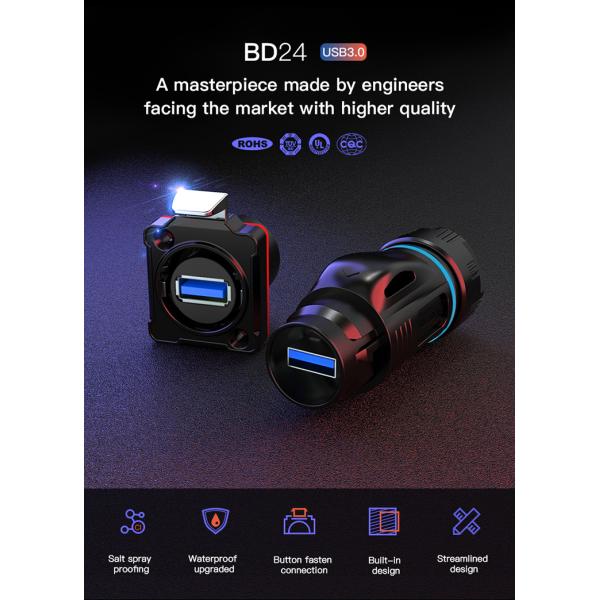

CNLINKO BD24 Plastic USB Panel Mount Connector IP67 Waterproof USB 3.0 Data Connector

Features:

1. Multi-purpose design (power, signal, data) for a wide range of application needs;
2. Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;
3. Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;
4. Stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
5. IP67 protection level in connection state;
6. One-piece streamlined design.

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP65/IP67
Cable specification	0.15mm² ~ 0.2mm² /26~24AWG
Diameter range	Φ5mm ~Φ6.5mm
Contact diameter×Qty	9PIN(3.0)&4PIN(2.0)
Current rating(A)	1.5A
Temperature rise	/
Withstanding voltage(AC.V)1min	1000V
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover

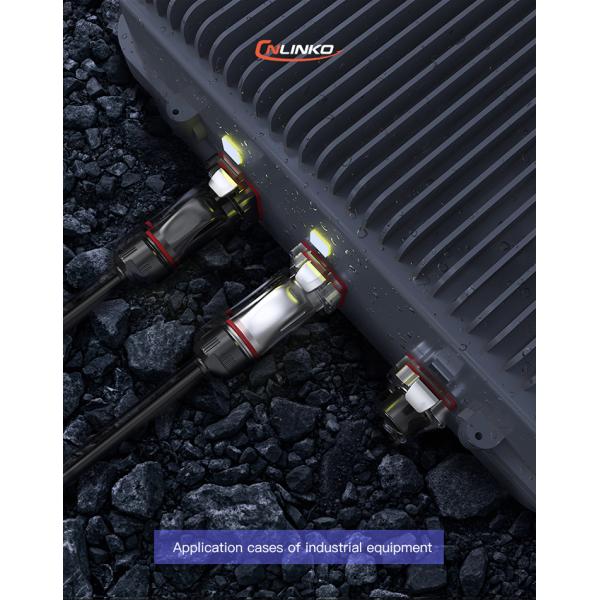

Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
