Cnlinko M20 Waterproof 7 Pin Circular Power Connector 7pin Metal Connector

Name: Cnlinko M20 Waterproof 7 Pin Circular Power Connector 7pin Metal Connector
Brand: Cnlinko
Price: 9.46 USD

Quality Cnlinko M20 Waterproof 7 Pin Circular Power Connector 7pin Metal Connector wholesale

Place of Origin : Guangdong, China

Brand Name : Cnlinko

Model Number : YZ-20-J07PE-01-001,YZ-20-C07SX-01-001

Certification : UL,CE,ROHS,CCC,ISO9001

MOQ : 10

Price : $9.46-10.46

Type : Signal

Application : Automotive

Gender : male and female, Female +male

Protection level : IP65/IP67

Pin : 2-12pin

Current rating(A) : 10A

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : plug/unplug

Operating voltage : 500V

Contact Now

Cnlinko M20 waterproof 7 pin circular power connector 7pin metal connector

Product Description

1.All zinc alloy shell,complete with electromagnetic and radio frequency interference. protection,while meeting the needs of high-end products to match.
2.Outer screw locking device a solid safety.
3.20mm optional mounting dimensions
4.hanging dust cover design avoid matters; high safe performance,easy to operate ,
5.2-12 pin available

More Hot Products

Cnlinko M20 Waterproof 7 Pin Circular Power Connector 7pin Metal Connector

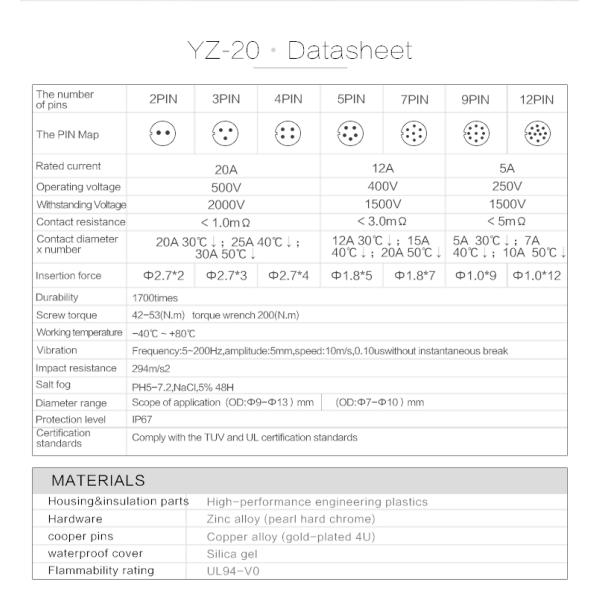

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP67
Cable specification	1.0~1.5mm2 /18~16AWG
Diameter range	Φ7.0mm ~Φ10.0mm
Contact diameter×Qty	7 Pin
Current rating(A)	10A
Operating voltage(AC.V.rms)	500V
Withstand voltage(AC.V)1min	/
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Solder
Prevent the combustion level	UL94-V0
Material
Shell&insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications

Cnlinko M20 Waterproof 7 Pin Circular Power Connector 7pin Metal Connector
