Cnlinko DL28 Series 2 3 4 5 Pin IP68 Waterproof Wire Connector Circular Aviation Plug Power Led Connectors

Name: Cnlinko DL28 Series 2 3 4 5 Pin IP68 Waterproof Wire Connector Circular Aviation Plug Power Led Connectors
Brand: CNLINKO
Price: 1 USD

Quality Cnlinko DL28 Series 2 3 4 5 Pin IP68 Waterproof Wire Connector Circular Aviation Plug Power Led Connectors wholesale

Place of Origin : Guangdong, China

Brand Name : CNLINKO

Model Number : DL-28

Certification : UL,CE,ROHS,ISO9001

MOQ : 10

Shape : ROUND

Rated Current : 35A~50A

Contact Material : Copper Alloy

IP level : ip68

Type : Power

Application : Industrial

Gender : male and female

Housing Material : PBT

Produce type : Male female cable connector

Current rating(A) : 35A~50A

Protection level : IP68

Shell & Insulated Parts : High Performance Engineer Plastic

Hardware Matel : Zinc Alloy (pearl hard chromium)

Connecting mode : Quickly insert and pull out

Assembly : Solder

Operating voltage : 500V~690V

Contact pin : Copper alloy(gold-plated)

Contact Now

Cnlinko YM-28 IP68 Plastic Waterproof Power Connector 3 Pin Circular Waterproof Connector

Features:

1.Multi-core design styles(2-5 cores),in line with the diversity of industrial demand,signal and power compatible match.
2.PBT material of the protective housing,with characters of fire safety,compression,anti-explosion and anti-deformation
3.Gold-plated contacts,high-strength corrosion resistance and electrical conductivity,effective response to temperature changes in current.
4.1/4 quick bayonet coupling,simple operation,easy installation.
5.Dustproof cover design under off-working condition.
6. 50A rms current rating.
7. Protection level:IP68

YM series connectors,using high-end injection molding PBT material,ensuring stable performance,multi-core design of the product,while meeting the needs of a number of power and signal equipment,the central shell distinctive logo,highlighting the latest design cnlinko.

Product Description

Specifications

Specifications
Connecting mode	Latching Lock connect
Protection level	IP68
Cable specification	2.5~4.0mm² /14-12AWG
Diameter range	Φ9mm ~Φ13mm
Contact diameter×Qty	Φ3.0×3
Current rating(A)	50A
Temperature rise	39A contact temperature below 40℃ 30A contact temperature below 50℃
Operating voltage(AC.V.rms)	500V~690V
Withstanding voltage(AC.V)1min	2000V
Contact resistance	<1.0mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP67/IP68)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover

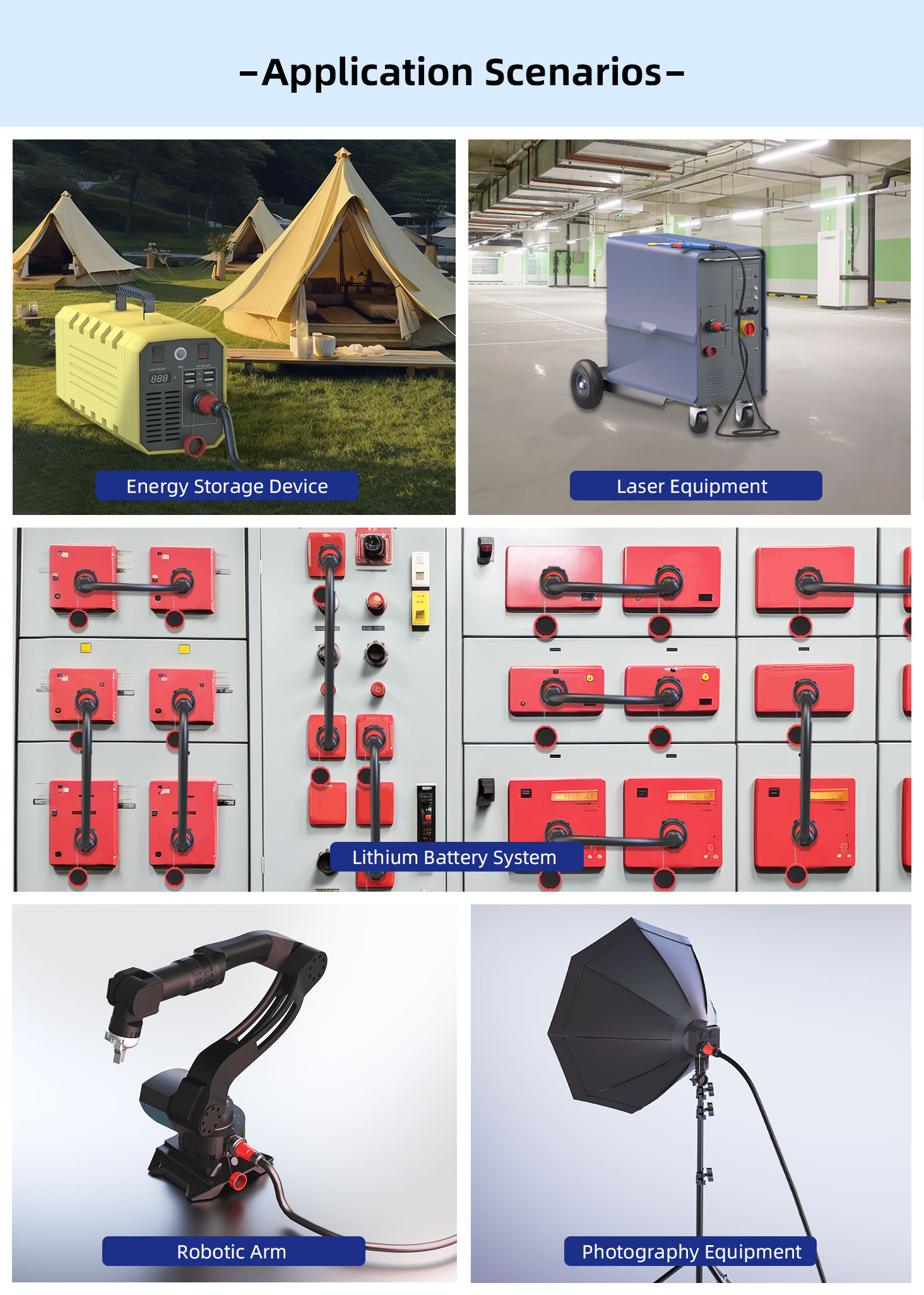

Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Cnlinko DL28 Series 2 3 4 5 Pin IP68 Waterproof Wire Connector Circular Aviation Plug Power Led Connectors Images
